28JXL30K/28ZY47

Motor Technical DataTypeRatedvoltageVDCNo-load Speed r/minNo-load Current mARate...

Material of the internal gear ring
28JXL30K/28ZY47: Plastic
Diameter: Φ28mm planetary reducer
Allowable torque range: 3.0N.m

Online Contact

PDF Download

product details

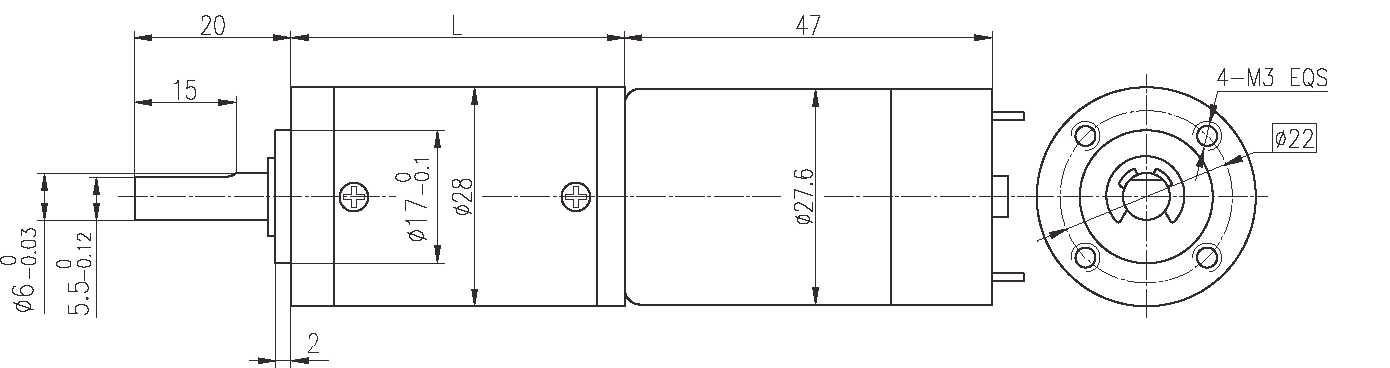

Outline reference diagram

Motor Technical Data

Type

Rated

voltage

VDC

No-load

Speed

r/min

No-load

Current

mA

Rated

Speed

r/min

Rated

Torque

mN.m

Output

Power

W

Rated

current

mA

Stall

Torque

mN.m

Stall

Current

A

28ZY47-1260

12

6000

130

5200

7.7

4.2

500

23

1.5

28ZY47-2460

24

6000

80

5140

9.2

5.0

300

28

0.9

Gear Motor Technical Data

28ZY47-1260 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	369	495	596
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	29.0	29.0	36.1	36.1	36.1	36.1	43.0	43.0	43.0	43.0	49.9	49.9	49.9	49.9	49.9
No-load speed r/min	1617	1158	429	316	222	171	118	85	60	43	32	23	16	12	10
Rated speed r/min	1402	1004	371	274	193	149	102	73	52	37	28	20	14	11	8.7
Rated torque N.m	0.026	0.036	0.087	0.12	0.17	0.22	0.29	0.40	0.56	0.78	0.95	1.3	1.8	2.5	3.0
N.m Max. permissible load in a short time	0.6	0.6	2.5	2.5	2.5	2.5	5.0	5.0	5.0	5.0	6.0	6.0	6.0	6.0	6.0

28ZY40-2460 DC Motor

Reduction ratio	3.7	5.2	14	19	27	35	51	71	100	139	189	264	369	495	596
Number of gear trains	1	1	2	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	29.0	29.0	36.1	36.1	36.1	36.1	43.0	43.0	43.0	43.0	49.9	49.9	49.9	49.9	49.9
No-load speed r/min	1617	1158	429	316	222	171	118	85	60	43	32	23	16	12	10
Rated speed r/min	1385	992	367	271	190	147	101	72	51	37	27	19	14	10	8.6
Rated torque N.m	0.031	0.043	0.104	0.14	0.20	0.26	0.34	0.48	0.67	0.93	1.1	1.6	2.2	3.0	3.0
N.m Max. permissible load in a short time	0.6	0.6	2.5	2.5	2.5	2.5	5.0	5.0	5.0	5.0	6.0	6.0	6.0	6.0	6.0
