Brushless DC planetary gear reduction motor
-
36JXE30K/36ZWNP57
Motor Technical Data
TYPE | Number of poles | Number of phase | Rated voltage VDC | No-load speed r/min | Rated speed r/min | Rated torque mN.m | Rated Power W | Rated current mA |
36ZWNP57-2450 | 4 | 3 | 24 | 5000 | 4200 | 40 | 18 | 257 |
Brushless Gear Motor Technical Data
36ZWNP57-2450 BLDC Motor
Reduction ratio | 3.7 | 5.2 | 14 | 19 | 27 | 51 | 71 | 100 | 139 | 189 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
Length(L) mm | 26.5 | 26.5 | 33.6 | 33.6 | 33.6 | 40.5 | 40.5 | 40.5 | 40.5 | 47.4 |
No-load speed r/min | 1348 | 965 | 357 | 263 | 185 | 98 | 70 | 50 | 36 | 26 |
Rated speed rAnin | 1132 | 811 | 300 | 221 | 156 | 82 | 59 | 42 | 30 | 22 |
Rated torque N.m | 0.13 | 0.19 | 0.45 | 0.62 | 0.87 | 1.5 | 2.1 | 2.9 | 3 | 3 |
N.m Max. permissible load in a short time | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9 |

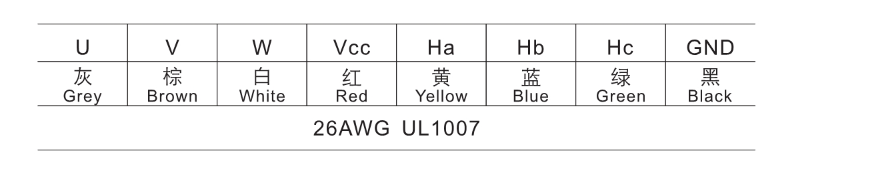

Wire Diagram
