42JX150K/42ZY66

Motor Technical DataTYPERated voltageVDCNo-loadspeedr/minNo-loadcurrentARatedspeedr/minRated&nb...

Material of the internal gear ring
42JX150K/42ZY66: Metal material
42JX150K/42ZY66: Powdered metal
Diameter: Φ42mm reinforced reducer
Allowable torque range: 2 n.m to 15 n.m

Online Contact

PDF Download

product details

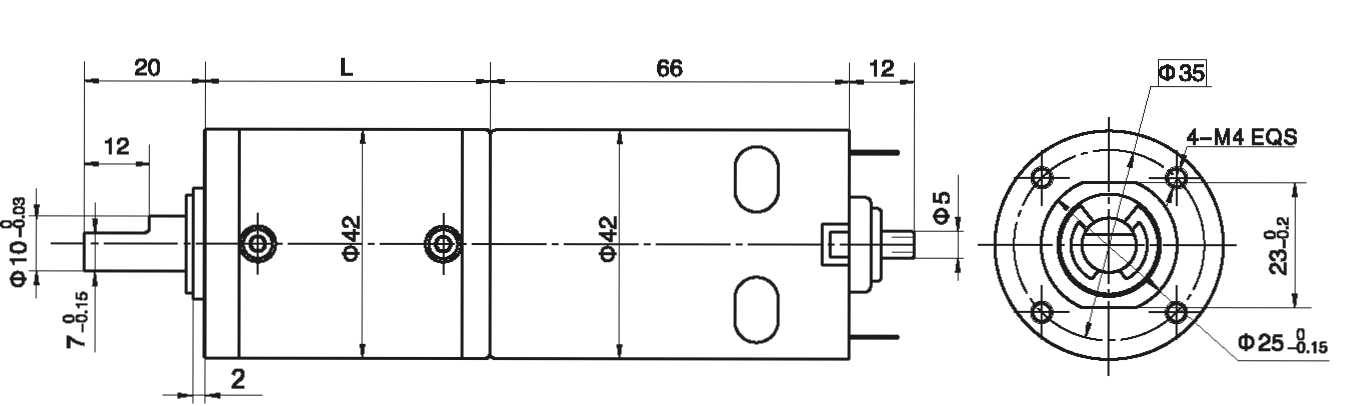

Outline reference diagram

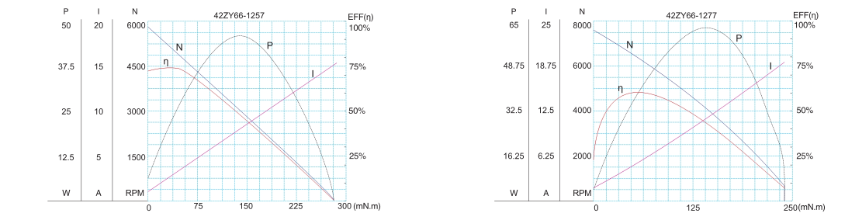

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

A

Stall

Torque

mN.m

Stall

current

A

42ZY66-1257

12

5700

0.8

4800

45

25

3.0

280

15.2

42ZY66-1277

12

7700

1.3

6500

65

35

5.0

240

20.5

Gear Motor Technical Data

42ZY66-1257 DC Motor

Reduction ratio	3.5	14	17	21	49	61	84	104	126	172	212	294	504
Number of gear trains	1	2	2	2	3	3	3	3	3	4	4	4	4
Length(L) mm	32.5	39.2	39.2	39.2	46	46	46	46	46	52.5	52.5	52.5	52.5
No-load speed r/min	1628	407	335	271	116	93	68	55	45	33	27	19	11
Rated speed r/min	1371	343	285	229	98	79	57	47	38	28	23	16	9.5
Rated torque N.m	0.14	0.51	0.61	0.76	1.6	2.0	2.8	3.4	4.1	5.1	6.3	8.7	15
N.m Max. permissible load in a short time	3	12	12	12	25	25	25	25	25	30	30	30	30

42ZY66-1277 DC Motor

Reduction ratio	3.5	14	17	21	49	61	84	104	126	172	212	294	504
Number of gear trains	1	2	2	2	3	3	3	3	3	4	4	4	4
Length(L) mm	32.5	39.2	39.2	39.2	46	46	46	46	46	52.5	52.5	52.5	52.5
No-load speed r/min	1628	407	335	271	116	93	68	55	45	33	27	19	11
Rated speed r/min	1371	343	285	229	98	79	57	47	38	28	23	16	9.5
Rated torque N.m	0.14	0.51	0.61	0.76	1.6	2.0	2.8	3.4	4.1	5.1	6.3	8.7	15
N.m Max. permissible load in a short time	3	12	12	12	25	25	25	25	25	30	30	30	30
