42JXGT200K/42BL60
Brushless Motor Technical Data
TYPE | Number of poles | Number of phase | Rated Voltage VDC | No-load Speed r/min | Rated Speed r/min | Rated Torque mN.m | Rated Power W | Reak Torque mN.m | Peak Current A | Line to line resistance ohms | Line to line inductance mH |
42BL60-2440 | 10 | 3 | 24 | 4000 | 3000 | 160 | 50 | 650 | 11.8 | 1.1 | 0.96 |
Brushless Gear Motor Technical Data
42BL60-2440 BLDC Motor
Reduction ratio | 17 | 22 | 5 | 83 | 106 | 247 |
Number of gear trains | 2 | 2 | 3 | 3 | 3 | 4 |
Length(L) mm | 48.0 | 48.0 | 58.3 | 58.3 | 58.3 | 68.6 |
No-load speed r/min | 235 | 182 | 62 | 48 | 38 | 16 |
Rated speed rAnin | 176 | 136 | 46 | 36 | 28 | 12 |
Rated torque N.m | 2.2 | 2.9 | 7.6 | 9.7 | 12 | 20 |
N.m Max. permissible load in a short time | 25 | 25 | 50 | 50 | 50 | 50 |

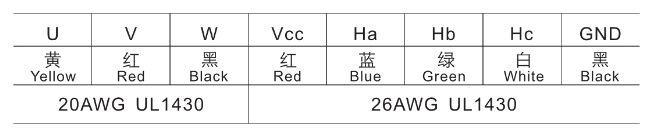

Wire Diagram
