无刷电动机主要技术参数 Brushless Motor Technical Data
电机型号 TYPE |
极数Number of poles |
相数Number of phase | 额定电压Rated Voltage VDC | 空载转速No-load Speed r/min | 额定转速Rated Speed r/min | 额定转矩Rated Torque mN.m | 额定功率Rated Power W | 峰值转矩Reak Torque mN.m | 峰值电流Peak Current A | 电阻Line to line resistance ohms | 电感Line to line inductance mH |
42BL60-2440 | 10 | 3 | 24 | 4000 | 3000 | 160 | 50 | 650 | 11.8 | 1.1 | 0.96 |
无刷行星齿轮减速电机主要技术参数 Brushless Gear Motor Technical Data
配置 42BL60-2440 无刷直流电机(42BL60-2440 BLDC Motor)
减速比 Reduction ratio | 17 | 22 | 5 | 83 | 106 | 247 |
减速级数 Number of gear trains | 2 | 2 | 3 | 3 | 3 | 4 |
减速器长度(L) Length(L) mm | 48.0 | 48.0 | 58.3 | 58.3 | 58.3 | 68.6 |
空载速度 No-load speed r/min | 235 | 182 | 62 | 48 | 38 | 16 |
额定转速 Rated speed rAnin | 176 | 136 | 46 | 36 | 28 | 12 |
额定转矩 Rated torque N.m | 2.2 | 2.9 | 7.6 | 9.7 | 12 | 20 |
最大瞬间允许负载 N.m Max. permissible load in a short time | 25 | 25 | 50 | 50 | 50 | 50 |

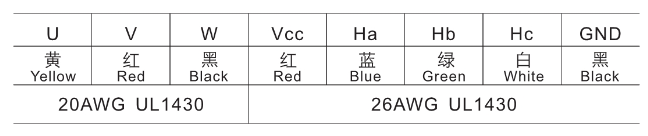

接线方式 Wire Diagram
