36JXE30K/35ZY40

Motor Technical DataTYPERatedVoltage VDCNo-loadspeedr/minNo-load currentmARatedspeedr/minR...

Material of the internal gear ring
36JXE30K/35ZY40: Metal material
36JXF30K/35ZY40: Powdered metal
Diameter: Φ36mm planetary reducer
Allowable torque range: 0.03N.m to 0.3N.m

Online Contact

PDF Download

product details

Outline reference diagram

Motor Technical Data

TYPE

Rated

Voltage

VDC

No-load

speed

r/min

No-load

current

mA

Rated

speed

r/min

Rated

torque

mN.m

Output

power

W

Rated

current

mA

Stall

torque

mN.m

Stall

current

A

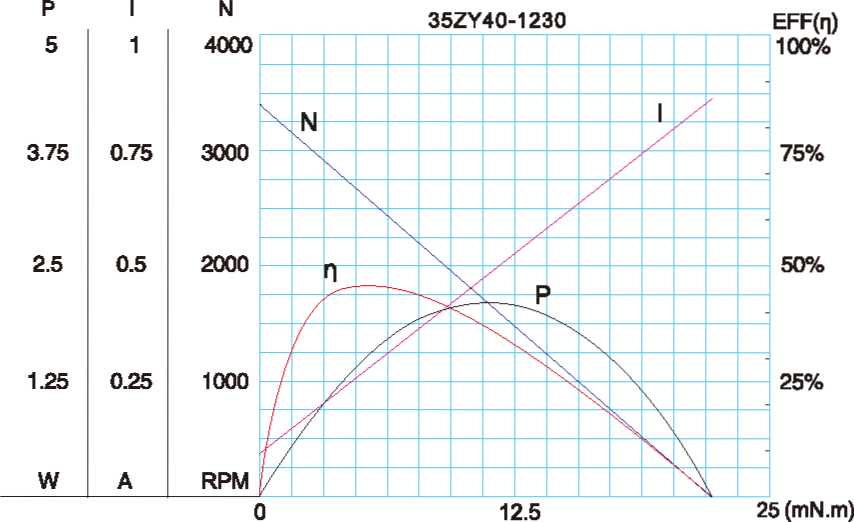

35ZY40-1230

12

3000

90

2300

9

2.1

400

22

0.8

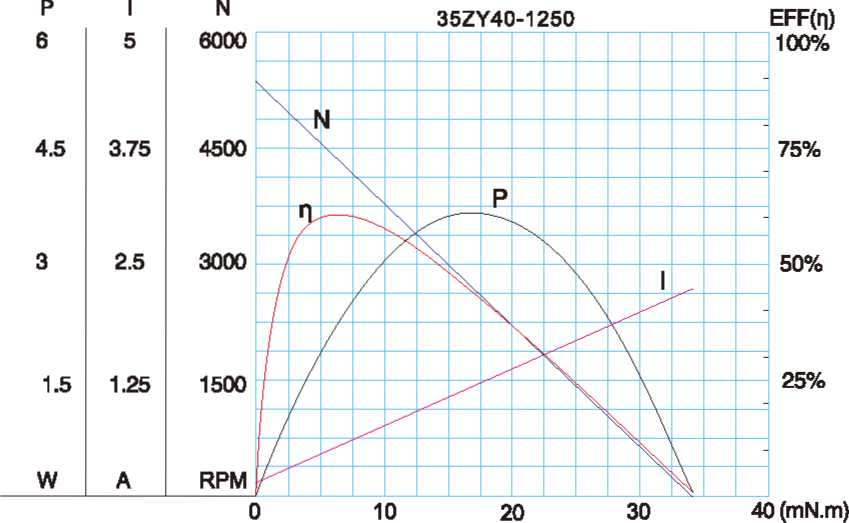

35ZY40-1250

12

5000

110

4300

8

3.5

600

34

2.2

Gear Motor Technical Data

35ZY40-1230 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1	5.8	4.2
Rated speed r/min	620	444	164	121	85	45	32	23	17	12	8.7	6.2	4.5	3.2
Rated torque N.m	0.030	0.042	0.10	0.14	0.20	0.34	0.47	0.66	0.91	1.1	1.5	2.2	3	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9	9

35ZY40-1250 DC Motor

Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length(L) mm	26.5	26.5	33.6	33.6	33.6	40.5	40.5	40.5	40.5	47.4	47.4	47.4	47.4	47.4
No-load speed r/min	1348	965	357	263	185	98	70	50	36	26	19	14	10	6.9
Rated speed r/min	1159	830	307	226	159	84	61	43	31	23	16	12	8.3	6.0
Rated torque N.m	0.027	0.037	0.09	0.12	0.17	0.30	0.41	0.58	0.81	0.98	1.4	1.9	2.7	3
N.m Max. permissible load in a short time	1.0	1.0	3.5	3.5	3.5	7.5	7.5	7.5	7.5	9	9	9	9	9
