45JX100K/45ZY78

 Motor Technical DataTYPERatedvoltageVDCNo-load Speed r/minNo-load currentARated...

Material of the internal gear ring
45JX100K/45ZY78: Metal material
Diameter: Φ45mm reinforced reducer
Allowable torque range: 1 n.m to 10 n.m

Online Contact

PDF Download

product details

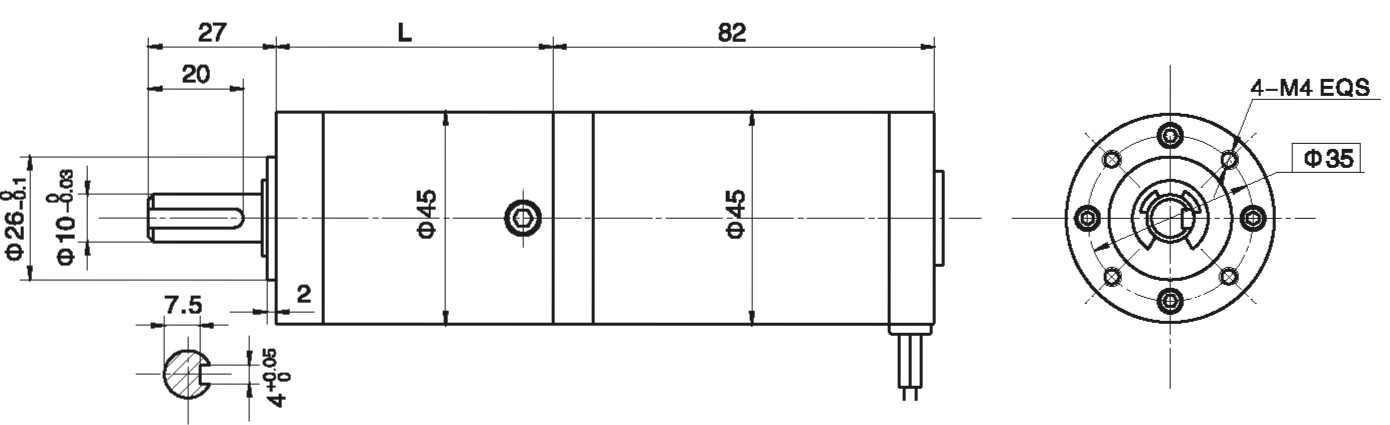

Outline reference diagram

Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

Speed

r/min

No-load

current

A

Rated

speed

r/min

Rated

torque

mN.m

Output

Power

W

Rated

current

A

Stall

torque

mN.m

Stall

current

A

45ZY78-2430

24

3000

0.22

2400

55

15

1.0

240

3.0

45ZY78-2440

24

4000

0.30

3200

70

23

1.5

310

4.8

Gear Motor Technical Data

45ZY78-2430 DC Motor

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	189	264	369
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4
Length(L) mm	35.3	35.3	45.6	45.6	45.6	58.4	58.4	58.4	58.4	68.7	68.7	68.7
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1
Rated speed r/min	647	463	171	126	89	47	34	24	17	13	9.3	6.5
Rated torque N.m	0.18	0.26	0.62	0.84	1.2	2.0	2.8	4.0	5.6	6.8	9.5	10
N.m Max. permissible load in a short time	3	3	12	12	12	25	25	25	25	30	30	30

45ZY78-2440 DC Motor

Reduction ratio	3.71	5.18	14	19	27	51	71	100	139	189	264
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4
Length(L) mm	35.3	35.3	45.6	45.6	45.6	58.4	58.4	58.4	58.4	68.7	68.7
No-load speed r/min	1078	772	286	211	148	78	56	40	29	21	15
Rated speed r/min	863	618	229	168	119	63	45	32	23	17	12
Rated torque N.m	0.23	0.32	0.79	1.0	1.5	2.6	3.6	5.1	7.1	8.7	10
N.m Max. permissible load in a short time	3	3	12	12	12	25	25	25	25	30	30
