Current Location： Home - Product Center - Permanent magnet DC planetary gear reduction motor - 56JX300K/80ZY115
56JX300K/80ZY115
Motor Technical DataTYPERatedvoltageVDCNo-load Speed r/minNo-loadcurrentARated Speed&...

  • Material of the internal gear ring

  • 56JX300K/80ZY3115: Metal material

  • Diameter: Φ56mm planetary reducer

  • Allowable torque range: 30 n.m


Online Contact PDF Download
product details
Outline reference diagram

  • Motor Technical Data

TYPE

Rated

voltage

VDC

No-load

 Speed

 r/min

No-load

current

A

Rated

 Speed

 r/min

Rated

 torque

mN.m

Output

Power

 W

Rated

current

A

Stall

 torque

N.m

Stall

current

A

80ZY115-2430

24

3000

0.80

2400

450

120

7.5

2.5

30

80ZY115-2435

24

3500

1.10

2900

500

150

9.5

3.0

35


  •  Gear Motor Technical Data

    80ZY115-2430 DC Motor

    Reduction ratio

    3.6

    4.25

    7.5

    13

    15

    18

    27

    32

    47

    55

    65

    76

    Number of gear trains

    1

    1

    1

    2

    2

    2

    2

    2

    3

    3

    3

    3

    Length(L) mm

    41

    41

    41

    61

    61

    61

    61

    61

    72

    72

    72

    72

    No-load speed r/min

    833

    706

    400

    230

    200

    167

    111

    94

    64

    54

    46

    39

    Rated speed    r/min

    667

    565

    320

    185

    160

    133

    88

    75

    51

    44

    37

    32

    Rated torque  N.m

    1.46

    1.72

    2.7

    4.7

    5.4

    6.5

    8.7

    10.3

    15.4

    18

    21.3

    25

    N.m Max. permissible load in a short time


    6

    6

    6

    25

    25

    25

    25

    25

    50

    50

    50

    50

    80ZY115-2435 DC Motor

    Reduction ratio

    3.6

    4.25

    7.5

    13

    15

    18

    27

    32

    47

    55

    65

    76

    Number of gear trains

    1

    1

    1

    2

    2

    2

    2

    2

    3

    3

    3

    3

    Length(L)    mm

    41

    41

    41

    61

    61

    61

    61

    61

    72

    72

    72

    72

    No-load speed    r/min

    972

    824

    467

    269

    233

    194

    130

    109

    74

    64

    54

    46

    Rated speed       r/min

    805

    682

    320

    223

    193

    161

    107

    90

    62

    53

    44

    38

    Rated torque        N.m

    1.6

    1.9

    3.0

    5.2

    6.0

    7.2

    9.8

    11.6

    17

    20

    23.7

    27.7

    N.m Max. permissible load in a short time


    6

    6

    6

    6

    25

    25

    25

    25

    50

    50

    50

    50

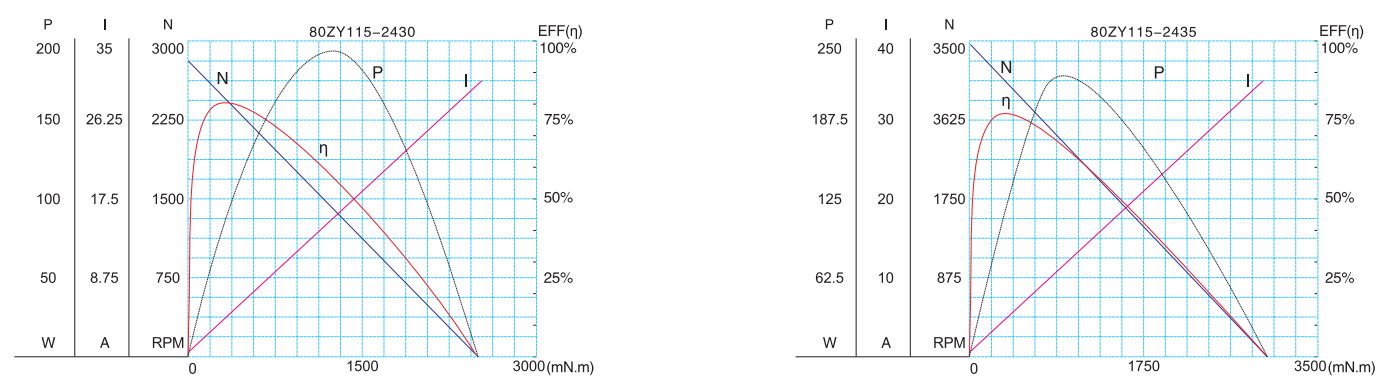

  • Motor Characteristic Figure
