Brushless DC planetary gear reduction motor
-
42JXGT200K/42ZWN60
Brushless Motor Technical Data
TYPE | Number of poles | Number of phase | Rated Voltage VDC | No-load Speed r/min | Rated Speed r/min | Rated Torque mN.m | Rated Power W | Reak Torque mN.m | Peak Current A | Line to line resistance ohms | Line to line inductance mH |
42ZWN60-2430 | 8 | 3 | 24 | 3000 | 2100 | 50 | 11 | 150 | 2.6 | 6.0 | 6.4 |
Brushless Gear Motor Technical Data
42ZWN60-2430 BLDC Motor
Reduction ratio | 65 | 83 | 83 | 247 | 247 | 403 | 515 | 944 |
Number of gear trains | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 5 |
Lengh(L) mm | 58.3 | 58.3 | 58.3 | 68.6 | 68.6 | 68.6 | 68.6 | 78.9 |
No-lod speed r/min | 46 | 36 | 36 | 12 | 12 | 7.4 | 5.8 | 3.2 |
Rated speed r/min | 32 | 25 | 25 | 9 | 9 | 5.2 | 4.1 | 2.2 |
Rated torque N.m | 2.4 | 3.0 | 3.0 | 8.0 | 8.0 | 13 | 17 | 20 |
N.m Max. permissible load in a short time | 50 | 50 | 50 | 60 | 60 | 60 | 60 | 60 |

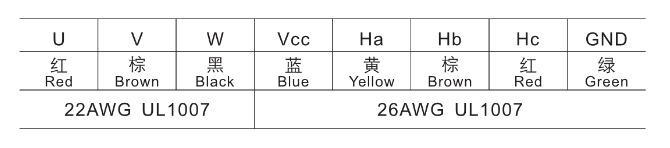

Wire Diagram
